high voltage power to dangerous so care full use you don't know about anything high voltage please don't try this | today I am made to show two way how to make very high voltage power supply and I want to share my personal experiment I hope you enjoy my project | There are many easy ways I have tried how to make High Voltage Power Supply | my circuit diagram to easy to make just three component use 1. D2499 output transistor 2. 470 ohms 2w resistor 3. any CRT. television flyback transformer or you can hand make flyback transformer I show tow different way this | if you do not have D2499 output you can use TIP122 C1061 TIP3055 D880 D882 D1347 | Any you can use NPN power transistor | and please do not use any N channel Mosfet because no Mosfet will work this project
flyback coil
 |
| handmade flyback how to make flyback at home, primary coil. 22no copper 18 turns | flyback coil 22no copper 40 turn | secondary coil 32no copper 120 turn | magnetic core / you can find old CRT television motherboard find out where it is here | fiber paper | glue | paper | tape | first, create a coil frame next coil winding first 22no copper 18 turns then cover tape next 22no copper 40 turns then cover tape next secondary coil 32no copper 120 turn again cover properly. |
 |

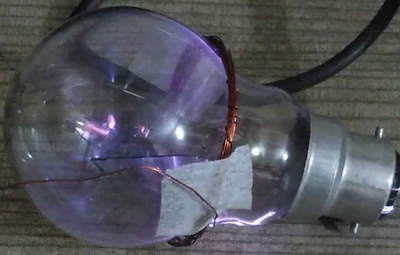

| high voltage power supply |
 |

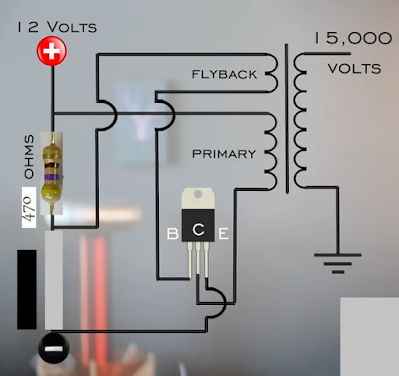

| circuit diagram |
